  1. Kyle Communications
    26/06/23 Trimmed stringer and notched around truss. Clecoed bottom skin to ribs and stringer. Drilled leading edge to front spar. Removed skin, deburred and dimpled. Microstop countersunk main spar and clecoed skin back to front spar, ribs and stringer. 4.6h
  2. Kyle Communications
    On a new engine you will have got the terminals required in the small cardboard box supplied with the engine. at least for the ignition shutdown which is shown in your picture. Separate wires are run back from those 2 modules back to the 2 switches on your panel.
  3. Kyle Communications
    The softstart inputs on the module are just joined together then a wire run back from those two inputs to the coil energising wire of the solenoid. There should only be 12v on the softstart wire while the starter solenoid is engaged. One the solenoid is not in use and there is no 12V on that point the input of the CDI there is a timing circuit inside it that holds the genuine Rotax units for about 6 seconds in full retard. After that 6 seconds then the engine switches to full advance and stays there until the engine is eventually shutdown after running or flight
  4. Kyle Communications
    Doing the modified cowl for Mabel was a friggin nightmare......I have a new most hated job now
  5. Kyle Communications
    I have the terminals if you want some That will be the kill sw wire it will be under the oragnce wire coming from the CDI module side. The mauve/purple wire at the CDI end is softstart is that a new engine?
  6. Kyle Communications
    Been cold in the workshop at night so havent done a lot in there. The twin stick coupling cover has been finalised and now carpeted. I have the cover attached. I put 3mm rivnuts into the floor and the cover nicely screws down and is super solid. The roof ribs are now painted and set onto the cabin overheads. The windscreen has been trimmed and also all drilled and also the roof section and all clecoed This week I will be reinstalling the ballistic chute box I made and getting the chute mounted and fitting the chute actuator. Not sure where that will end up yet. Some are on the top of the dash others are in front of the pilot on the cross member...so will make that decision later
  7. Kyle Communications
    Go to facebook and look up AOPA Australia..look at te last 3 videos Ben Morgan has done..watch the first one done 3 days ago then the next a day ago and the last one today. ....Its a eye opener especially the guy with the foxbat in RAA and has a defib
  8. Kyle Communications
    If you hook it up wrong I doubt it would be replaced under warranty....thats not in any manufacturers pervue
  9. Kyle Communications
    Thats probably a 4-20ma sender. Is there any numbers on the sender? some are 0.5 to 4.5V analogue style though
  10. Kyle Communications
    If it is the stickon type plastic sensor they are either a serial data out of a open collector transistor
  11. Kyle Communications
    You will find any aircraft wet hire will have to operate as a certified aircraft. Its a different matter if you have a mate who has a aircraft and "lets" you fly it. it does not have to be a certified aircraft. The only thing is though that you would usually be named on his insurance policy...if he has one of course and also how many hours you have up will be taken into account for that policy. If its not insured then be prepared to soak up the bill for any repairs if you damage it though.
  12. Kyle Communications
    My later version flap bracket had deeper notches...it made the engagement a lot more positive and highly unlikely to ever jump out even after a lot of wear.
  13. Kyle Communications
    02/06/23 Trimmed, deburred and clecoed Flap and Aileron Gap Seals to Rear Spar. Riveted final four rows of LH Wing upper skin rivets to ribs. Riveted Gap seals to Rear Spar. Upper skin of LH Wing complete. 4.4h
  14. Kyle Communications
    31/05/23 Riveted LH upper wing skin to ribs, fuel tank supports and stringers up to 4th last row. Match drilled upper flange of rear spar. Deburred rear spar and wing skin. 5.4h
  15. Kyle Communications
    29/05/23 Removed upper LH wing skin and deburred leading edge spar. Roller applied two coats of corrosion inhibitor to spars, ribs, stringers and tank supports. Replaced wing skin and clecoed in tank supports. Riveted leading edge of skin to spar. 4.3h
  16. Kyle Communications

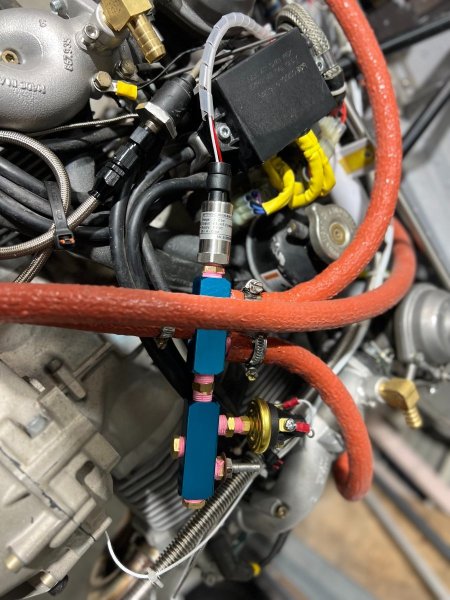

    The new sensors also had a unacceptable failure rate especially for about 400 bucks each. They went away from the Honeywell one to a German one...starts with a K...something like Keller. Not sure how relaible the new ones are. I have had a Honeywell fail and I put a VDO resistor style in but I remote mounted it so take out the hammering they get from the crankcase. I now remote mount even the electronic sensors. You can see it next to the CDI module the silver one is my fuel pressure sender it is a 0-5V electronic type not the 4-20ma type
  17. Kyle Communications
    Lets face it Rotax specify 2000 hr TBO....a bad run in wouldnt show up until after 2000 hr of ops
  18. Kyle Communications
    Sized up the required area for the twin stick control cover. It is there just incase something gets on the floor and decides to go in under the control yoke at the bottom and jam the controls. It will be coverd in carpet and I will use velcro to affix a front section on it that acts like a vertical glovebox. I did the same in "The Girlfriend" I have a little 600mm panbrake here so after hand making a pattern I transferred that to some 0.016 alu and started cuttong and then folding. I am not a sheet metal guy but it didnt come out too bad...but the carpet will hide a multitude of sins. Gotsome final fitting to do for the mounting.
  19. Kyle Communications
    27/05/23 Assembled RH wing aileron bellcrank. 0.4h
  20. Kyle Communications
    27/05/23 LE countersinking completed. Prep for anticorrosion paint for tops of ribs and front and rear spar contact areas 1 hr
  21. Kyle Communications
    24/05/23 Countersunk (microstop) main spar to accept LH dimpled upper wing skin. 1.3h
  22. Kyle Communications
    23/05/23 Trimmed stringers to length. Levelled and squared wing spars on aluminium box sections. Formed rolled edge on upper LH wing skin. Clecoed wing skin to ribs and matched drilled main spar. Deburred and dimpled wing leading edge. 3.8h
  23. Kyle Communications
    03/05/23 Riveted ribs 2-11 to front and rear spars. Installed LH wing flap and aileron bell cranks. 2.4h 06/05/23 Installed LH aileron bellcrank pushrod male rod end and aileron cable. Safety wired ferrule in locating slot. Installed LH flap Teleflex cable and safety wired to Teleflex cable mount. Attached male and female rod ends to flap bellcrank. 1.4h 08/05/23 Straightened (fluted) 11 ribs of RH wing. Drilled and deburred 5/8” holes in ribs of LH and RH wings. Added grommets to holes and cable draw string to LH wing ribs. 2.3h 13/05/23 Deburred ribs of RH wing. 1.9h 15/05/23 Routed and supported pitot and static lines in LH wing. Deburred 8 stringers for LH and RH wings. 5.4h
  24. Kyle Communications
    28/04/23 Squared flanges and straightened ribs of LH wing. Clecoed ribs temporarily to spars and shimmed truss to straighten rear spar. Fabricated wing attach angles for both wings and deburred. Deburred aileron and flap hinge brackets for both wings. 5.1h 30/04/23 Set-out aileron and flap hinge arms and rib attach angles. Removed ribs from spars and match drilled for hinge arms etc. Deburred all ribs and riveted hinge arms, flap and aileron bellcrank mounts and attach angles to ribs. Clecoed ribs to spars and positioned wing tie-down angle. 6.3h
  25. Kyle Communications
    This thread will be a copy of the build log for this aircraft 23/4/23 Assembled both flap bell crank and one aileron bell crank assemblies. 1.4h 24/4/23 Riveted all (10) doublers to main and rear spars of LH and RH wing. Removed and replaced 9 rivets that were incorrectly packed in CCPQ-43 packet. (Were actually CCPQ-42….12 wrong size rivets in packet) Updrilled truss attachment holes in main spars to 5/16” and cleared excess powdercoat from bolt holes in wing trusses. 3.4h 25/4/23 Commenced match drilling strut truss fittings to LH and RH truss bosses. 1.3h 25/4/23 Continued match drilling and started reaming strut truss fittings on both trusses. 3.3h 26/4/23 Completed reaming strut truss fittings and bolted same to LH and RH trusses. Reamed spars, doublers and trusses. Bolted LH truss to LH wing main truss. 2.8h
×
×
